Injectable Ampoule Production Line

Injectable Ampoule Production Line

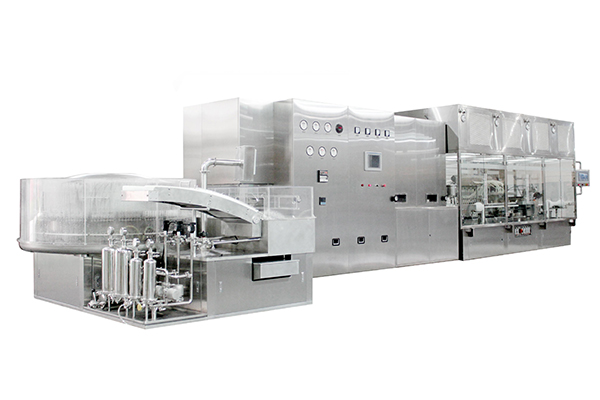

BXAZ ampoule cleaning, drying, filling and sealing production line is a new type of injectable ampoule production line which adopted the advanced international technology, combined several FE Pharmatech’s patents and according to the domestic ampoule production situation.
This line is composed by CLQ vertical ultrasonic cleaning machine, RSM sterilizing drying machine and AGF filling and sealing machine. It is divided into cleaning zone, sterilizing zone, filling and sealing zone.This compact line can work together as well as independently.

Flow Chart

Technical Parameters of Injectable Ampoule Production Line
Applicable specifications 1-20ml B type ampoules which meets the standard of GB2637.
Maximum capacity 7,000 to 10,000pcs/h
WFI consumption 0.2 to 0.3Mpa 1.0 m3/h
Compressed air consumption 0.4Mpa 50 m3/h
Electric capacity CLQ114Vertical ultrasonic washing machine:15.7kW
RSM620/60 Sterilizing and drying machine 46kW, heating power: 38kW
AGF12 Ampoule filling and sealing machine 2.6kW
Dimensions CLQ114Vertical ultrasonic washing machine: 2500 × 2500 × 1300mm
RSM620/60 Sterilizing and drying machine: 4280 × 1650 × 2400mm
AGF12 Ampoule filling and sealing machine: 3700 × 1700 × 1380 mm
Weight CLQ114Vertical ultrasonic washing machine: 2600 Kg
RSM620/60 Sterilizing and drying machine: 4200 Kg
AGF12 Ampoule filling and sealing machine: 2600 Kg

Main Features
1.The injectable ampoule production line realizes single linkage, continuous operation from washing, sterilizing, filling and sealing. The whole production process realizes cleaning operation, protects products from contamination, meets the GMP production standard.
2. The ultra filtration technology is applied at the washing machine’s filter. The clean and sterile washing water and compressed air are obtained through terminal filter, which can improve the clarity of the washed bottle.
3. Bottle infeed auger and star wheel meet, and the auger space is small. Ampoules can walk straight. Ampoules can transfer more stable and can hardly broken.
4. Double tank and double circulation. The circulation water tank and rough wash water tank are totally separate. The cleaning water is used step by step. The cleaning effect is much better.
5. The stainless manipulators are one side fix. The location is more accuracy. The manipulators are wearproof. When changing of pitch the manipulators no need stretch out and turn. The turning bearing wont contaminating the cleaning water.
6. This ampoule cleaning, drying, filling and sealing production line adopts water and compressed air cross pressure jet wash and ultrasonic wash at inverted state. The cleaning effect is very good.
7. The ampoules are sterilized by the hot air laminar flow sterilization principle. The heat distribution is more even. The ampoules are under the HDC high temperature sterilization condition, which meets the standard of GMP.
8. This equipment adopts negative pressure sealing principle to seal the high efficiency filter which are used for purify the tunnel. The filter is easy to install which can ensure the one hundred purification condition.
9. The equipment uses hinge type seat heat and horizontal hot air fan structure. The maintenance is more convenient and laborsaving.
10. This equipment adopts chain conveying belt with flank. The conveying belt won’t be off track, anticreeper, no bottle falling.
11. The equipment adopts advance technology such as multi-needle filling, front and rear nitrogen charging and wire drawing sealing, which can meet the standard of different type of products.
12. The fill-seal machine adopts balcony structure. The starwheel infeed and convey bottles continuously, the running of the equipment is stable and less bottle breakage.
13. This equipment is universal. It can’t be used to 1-20ml ampoules. Changing parts are convenient. In the meantime, the equipment can be used as vial washing, filling and capping compact line by changing some mould and outfeed wheel.
