Description

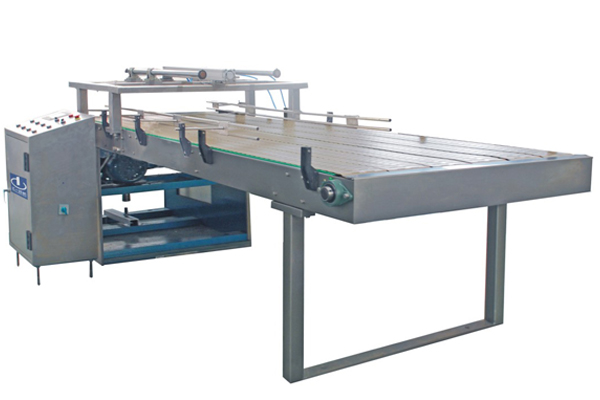

DSP100/500 PP bottle loading machine is mainly used for pushing the bottles into sterilizing cart automatically after PP bottle IV-solution production finishes bottle sealing, PP bottles sizes of 100ml, 250ml, 500ml, 1000ml all are suitable.

Main Features of Bottle Loader Machine
1. PLC control, auto bottle pushing, auto lifting and pushing, auto stopping if no bottle, with accurate movement
2. The speed is adjustable.









Technical Parameters of PP Bottle Loading Machine

Item	Data
Production Capacity	100 to 600bottles/min
Electric Capacity	3kW 380V 50Hz
Air Consumption	4 to 8m3/hour
Pressure	0.5MPa
Overall Dimension	3500 × 1200 × 1200mm³ (L×W×H)
Net Weight	1300kg
