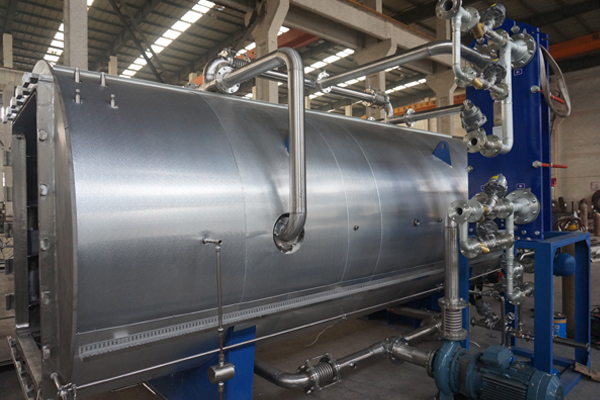

Super Heated Water Sterilizer

Super Heated Water Sterilizer
Description
Water bath sterilizer uses high temperature circulating water as sterilization medium, and carry out water-pouring sterilizing operation to LVP PP bottles. With anti-pressure protection device, it can be applied widely to high-and-low temperature sterilizing operation on liquid in glass bottles, ampoule bottles, plastic bottles, plastic bags in pharmaceutical industry. Superheated water sterilizer is also suitable for food industry to sterilize all kinds of sealed package, drinks, cans etc.

Main Features
1. The machine features heat efficiency, good temperature uniformity, wide temperature range.
2. Sterilizing medium runs in a closing circulating system, which prevents second pollution during operating.





Technical Parameters of Water Bath Sterilizer
Design pressure Design temperature Working pressure Working temperature Heat uniformity
0.245Mpa 139℃ 0 to 0.22Mpa 60 to 134℃ ≤±1℃

Energy Supply:
Item steam Deionized water Cooling water Compressed air Power supply AC380V 50HZ
energy pressure 0.4-0.8MPa 0.2-0.3MPa 0.2-0.3MPa 0.6-0.8MPa
pipe diameter DN100 DN50 DN100 DN50 30-100KW
