Description

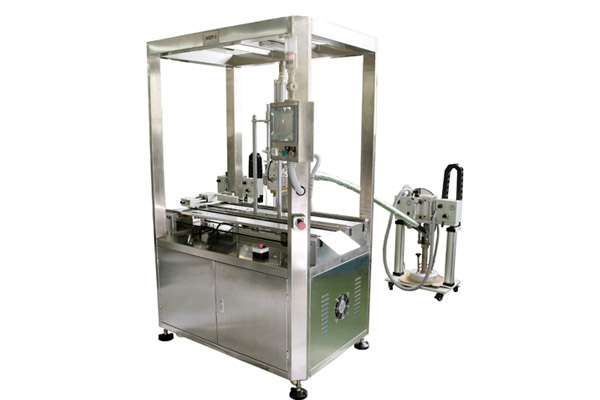

The gel filling machine is suitable for filling the separation gel in blood collection tube, which features accurate measurement, beautiful shape, high efficiency, simple filling, easy operation.

Advantages of Gel Filling Machine
1. Instead of traditional gel filling style, the innovative and improved equipment is more suitable for gel filling process requirements.
2. Accurate measurement, beautiful shape and high efficiency
3. Simple filling, easy operation







Parameters of Tube Filling Machinery

Capacity	5000-10000pcs/h,(affected by the viscosity and filling volume)
Filling	10/20 pcs gel filling valve, 10/20 × 1 pcs/ time
Gel filling amount	0.1 to 1.5 cc, ±5％
Tube type	13mm diameter (75 tube and 100 tube are universal), 16mm diameter tuber.(the clamps for 13mm and 16mm tube are different)
Air consumption	≤0.2m3/min, air source pressure: 0.5Mpa≤P≤0.8Mpa
Power	2.1kW, AC380V, 50/60Hz
Outer dimension	1200mm × 1000mm × 1800mm
Weight	350kg
