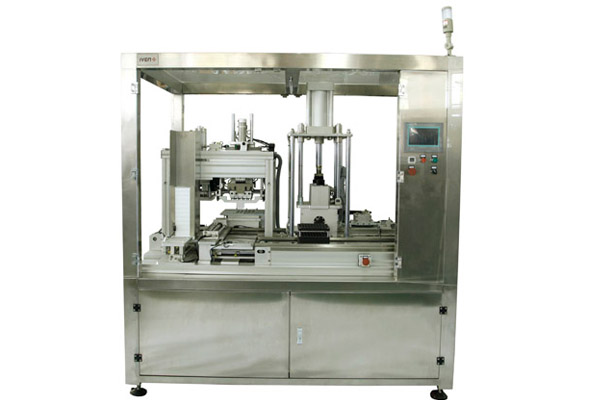

Automatic vacuuming & Tray Loading Machine
Description
Automatic vacuuming and tray loading machine is used for vacuumizing the vacuum blood collection tube, it will automatically produce a certain negative pressure inside the tube and automatically load the products into the foam tray.
Advantages of Automatic Vacuuming and Tray Loading Machine
1. Vacuum Stability & High Efficiency: It uses high-precision vacuum test instrument to realize intelligent control, and combine with cylinder valve to control and realize high precision, high stability and high efficiency.
2. Excellent vacuum balance: It adopts vacuum upper suction, which can effectively prevent the cap enter into the test tube before pressing the cap, so as to ensure the vacuum degree in the test tube meet the design requirements.
3. Tube tray load machine can load the tube in the tray directly, saving the manual operation and greatly improving the production efficiency.
Technical Parameters of Tube Tray Load Machine
Automatic vacuuming and tray loading machine is used for vacuumizing the vacuum blood collection tube, it will automatically produce a certain negative pressure inside the tube and automatically load the products into the foam tray.
Advantages of Automatic Vacuuming and Tray Loading Machine
1. Vacuum Stability & High Efficiency: It uses high-precision vacuum test instrument to realize intelligent control, and combine with cylinder valve to control and realize high precision, high stability and high efficiency.
2. Excellent vacuum balance: It adopts vacuum upper suction, which can effectively prevent the cap enter into the test tube before pressing the cap, so as to ensure the vacuum degree in the test tube meet the design requirements.
3. Tube tray load machine can load the tube in the tray directly, saving the manual operation and greatly improving the production efficiency.
Technical Parameters of Tube Tray Load Machine
Capacity | 12000 to 18000pcs/hour |
Vacuum degree | 0 to 0.098Mpa/cm2 vacuum error: ±3% |
Available tube size | Φ 13 tube (13 × 75, 13× 100) or Φ 16 tube. (the equipment of Φ13 and Φ16 tube are not universal) |
Quantity of per mould | 100 pcs |
Power | 2.5kW/AC380V/50Hz |
Air consumption | ≤6m³/min. air supply pressure: 0.5MPa≤P≤0.8MPa |
Air supply pressure | 0.5MPa≤P≤1MPa |
Outer dimension | 1500mm × 1000mm × 1700mm |
Weight | 500kg |
