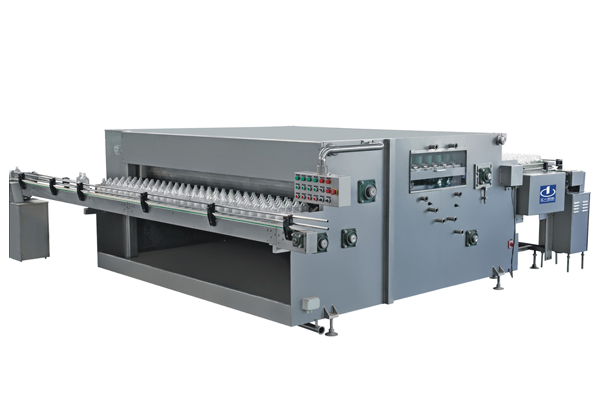

Bottle Fine Washing Machine
Glass bottle fine washing machine is mainly used for fine washing of IV solution glass bottle of 50ml to 500ml and other similar glass bottle cleaning. It can be used for bottle washing of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other medical liquids (like tincture liquid) etc.
Main Features
1. Realize integration of mechanical, electronic, and pneumatic with high automation.
2. Water pressure and washing time can be set according to actual demand.
3. Bottle washing water can be recycled and filtered for degrading use, reducing water consumption.
4. Glass bottle fine washer machine adopts crawler-type to deliver bottles, washing water uses intermittent rinsing, avoiding cross contamination caused by continuous rinsing.
5 Bottle input uses the combination of bottle hook and guide plate, making the bottle input more reliable and no bottle reversal.
6. Bottle output from washing machine adopts twice bottle receiving technology, avoiding bottle reversal and broken.
Technical Parameters of Bottle Fine Washing Machine
| Main Items | Main Contents | |||
| Model | LJXA12 | LJXA12 | JXA26 | JXA30 |
| Applied Bottle Size | 50ml, 100ml, 250ml, 500ml | 50ml, 100ml, 250ml | ||
| Capacity | 80-200 Bottles/min | 200-300 Bottles/min | 300-500 Bottles/min | 300-600 Bottles/min |
| Bottle Entering No. at a time | 12 | 20 | 26 | 30 |
| Electric Capacity | 5.5kW | 6kW | 6kW | 6kW |
| Water Consumption | Purified water: 80ml/bottle Injection water: 120ml/bottle 0.2MPa | |||
| Overall Size(mm) | 4275 × 2838 × 1600 | 3850 × 3920 × 1600 | 3850 × 4520 × 1600 | 3850 × 4550 × 1600 |
