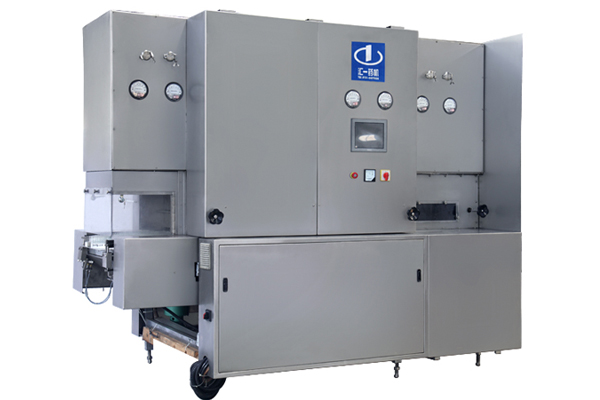

Sterilizing and Drying Machine
Description
RSM sterilizing and drying machine is mainly used for sterilizing and drying of the ampoules, vials, oral liquid bottles and other glass containers in the pharmaceutical industry.It automatically completes the whole procedure of bottle feeding, pre-heating, sterilizing-drying, cooling and outputting.
Glass sterilization drying machine adopts laminar air flow principle and hot air high-speed disinfection technology, which make the container in the sealed tunnel to achieve cleanliness Class A standard. Because of the good heat distribution and depyrogenation, it’s the most popular drying and sterilizing machine.
Features of Sterilizing and Drying Machine
1. PAO detection
2. Negative pressure sealing device
3. Real-time display, print temperature curve(dual probe)
4. Air pressure auto balancing system(5 modes)
5. Ultrasonic belt cleaning device
6. Daylight, night 2 operation modes
7. PID temperature control technology in different zones
8. Air fan independent frequency control
9. Pressure differential monitor and alarm
10. 6-channel recorder
Main Parameters of Sterilizing and Drying Machine
RSM sterilizing and drying machine is mainly used for sterilizing and drying of the ampoules, vials, oral liquid bottles and other glass containers in the pharmaceutical industry.It automatically completes the whole procedure of bottle feeding, pre-heating, sterilizing-drying, cooling and outputting.
Glass sterilization drying machine adopts laminar air flow principle and hot air high-speed disinfection technology, which make the container in the sealed tunnel to achieve cleanliness Class A standard. Because of the good heat distribution and depyrogenation, it’s the most popular drying and sterilizing machine.
Features of Sterilizing and Drying Machine
1. PAO detection
2. Negative pressure sealing device
3. Real-time display, print temperature curve(dual probe)
4. Air pressure auto balancing system(5 modes)
5. Ultrasonic belt cleaning device
6. Daylight, night 2 operation modes
7. PID temperature control technology in different zones
8. Air fan independent frequency control
9. Pressure differential monitor and alarm
10. 6-channel recorder
Main Parameters of Sterilizing and Drying Machine
Item | Main Content |
Production Capacity | 10000 to 40000 ampoules/hour |
Applicable Size | 1 to 20ml ampoules |
Temp. Adjusting Range | 50℃ to 350℃ |
Sterilizing Temp. | 280℃ to 320℃ |
Bottle Broken Rate | ≤0.2% |
HEPA Filter | Up to 400℃ |
Air Speed Control | About 0.5 to 0.7m/s |
Mesh Belt Speed | 0 to 400 mm/min |
Mesh Belt | 600mm |
Cooling Zone Cooler | Air cooling |
Outlet Bottle Temp. | No higher than 10℃ of room temperature |
External Chamber Temp. | <40℃ |
Mesh Belt Cleaning Device | Equipped with PW online ultrasonic cleaning |
