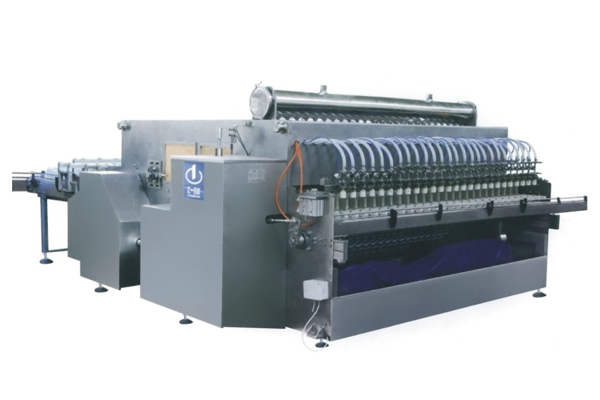

Glass Bottle Washing Filling machine
Brief Introduction
Bottle washing filling machine is mainly applied for washing and filling IV solution glass bottle of 50ml to 500ml and other similar glass bottles. Glass bottle cap sealing machine can be used for washing and filling of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other medical liquids (like tincture liquid), etc.
Main Features
1. Realize integration of mechanical, electronic and pneumatic with high automation.
2. Water pressure and washing time can be set according to actual demand.
3. Bottle washing water can be recycled and filtered for degrading use, reducing water consumption.
4. Bottle washing filling machine adopts crawler-type to deliver bottles, washing water uses intermittent rinsing, avoiding cross contamination caused by continuous rinsing.
5. Bottle input adopts the combination of bottle hook and guide plate, making the bottle input more reliable and no bottle reversal.
6. Bottle output from washing machine adopts twice bottle receiving technology, avoiding bottle reversal and broken.
7. Filling adopts time and constant current theory. Filling valve and filling time can be adjusted separately with high accuracy.
8. Filling immediately after fine washing, reducing possible pollution caused by long-distance delivery.
Technical Parameters of Bottle Washing Filling Machine
Bottle washing filling machine is mainly applied for washing and filling IV solution glass bottle of 50ml to 500ml and other similar glass bottles. Glass bottle cap sealing machine can be used for washing and filling of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other medical liquids (like tincture liquid), etc.
Main Features
1. Realize integration of mechanical, electronic and pneumatic with high automation.
2. Water pressure and washing time can be set according to actual demand.
3. Bottle washing water can be recycled and filtered for degrading use, reducing water consumption.
4. Bottle washing filling machine adopts crawler-type to deliver bottles, washing water uses intermittent rinsing, avoiding cross contamination caused by continuous rinsing.
5. Bottle input adopts the combination of bottle hook and guide plate, making the bottle input more reliable and no bottle reversal.
6. Bottle output from washing machine adopts twice bottle receiving technology, avoiding bottle reversal and broken.
7. Filling adopts time and constant current theory. Filling valve and filling time can be adjusted separately with high accuracy.
8. Filling immediately after fine washing, reducing possible pollution caused by long-distance delivery.
Technical Parameters of Bottle Washing Filling Machine
Main Items | Main Contents | |||
Model | QJG12 | QJG20 | QJG26 | QJG30 |
Applied Bottle Size | 50ml, 100ml, 250ml, 500ml | 50ml, 100ml, 250ml | ||
Capacity of glass bottle cap sealing machine | 80-200 Bottles/min | 200-300 Bottles/min | 300-400 Bottles/min | 300-450 Bottles/min |
Bottle Entering No. at a time | 12 | 20 | 26 | 30 |
Filling Heads | 12 | 20 | 26 | 30 |
Metering Error | ±1.5%(standard container) | |||
Electric Power | 5.5kW | 6kW | 6kW | 6kW |
Water Consumption | Purified water: 80ml/bottle Injection water: 120ml/bottle 0.2MPa | |||
Overall Size(mm) | 4275 × 2838 × 1600 | 3850 × 3920 × 1600 | 3850 × 4520 × 1600 | 3850 × 4550 × 1600 |
