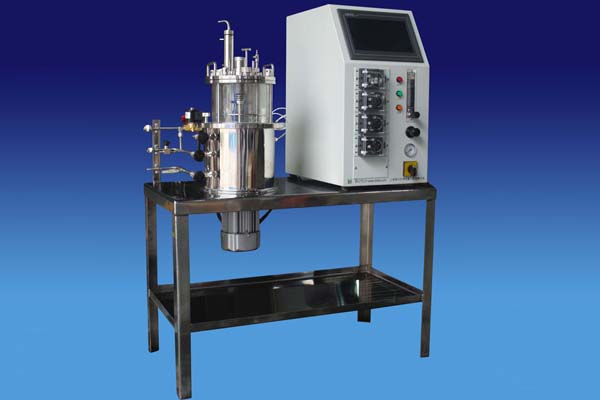

10BGZ In Suit Sterilized Fermenter

10BGZ In Suit Sterilized Fermenter
Basic Unit
Vessel: Total volume: 10L, working volume: 7L. Vessel is made of specialized borosilicate and stainless steel (316L).Autoclavable.
Stirrer: Drive with AC motor, speed adjustable. Magnetic drive from bottom. Solid stirrer shaft with 2 pieces of 6-blade disk impeller and 1 set of foam breaker. Rotate speed range: 50-1000rpm.
Aeration for Fermenter Machinery: With stainless steel ring sparger in the vessel and silica gel tube and air filter outside.
Thermal circuit: Electrical heating in jacket; auto-control: (cooling water+5℃)~50℃±0.2℃.
Peristaltic pumps: 4 peristaltic pumps each assignable to function for acid/alkali, anti-foam and nutrient feeding. Each pump including perforation needles and silicone hose. Automatic or manual control.
Sterilization: in situ with external steam.
Control system: Various controller forchoose. Details: BIOTECH-7000, BIOTECH-9000

Optional for In Situ Sterilized Fermenter
1. Auto detect and auto control of air mass flow, liquid level;
2. Detect of exhaust O2 and CO2
3. Additional pump for feed
4. Weight system for vessel and feeding
5. Auto- Sterilization
6. Other customized function
