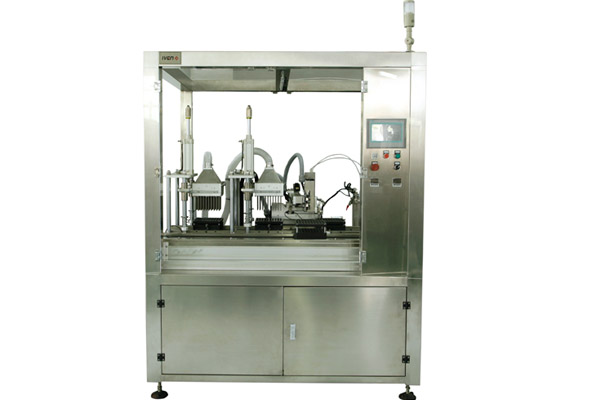

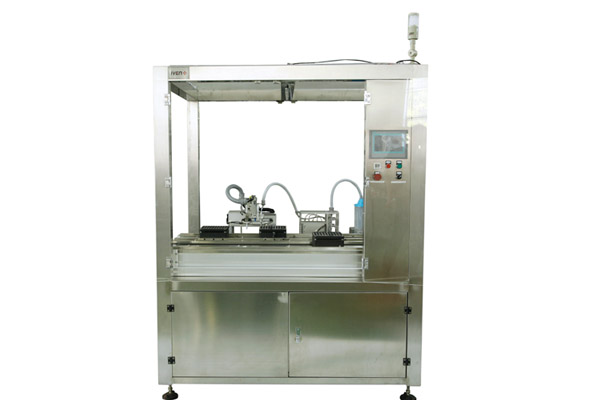

Automatic Dosing Machine
Description
Automatic dosing machine is suitable for precise filling and spraying of blood collection tube reagent. It adopts advanced and stable plunger pump filling way, which precision reaches 1%, not affected by pressure, voltage and time.
Advantages of Automatic Dosing Machine
1. High accuracy and stability
Adopt advanced and stable plunger pump filling way, precision reaches 1%, not affected by pressure, voltage and time.
2. Automatic alarm, blockage prevention
During the process of filling and spraying, the medicament crystal will block the nozzle and it’s hard to be discovered in the traditional operation process, the check process is complicated.
In order to solve this problem, this automatic dosing equipment adopts a set of automatic alarm system, when the blocking of spraying nozzle and pipeline caused by foreign body or crystal under half, it does not affect the filling precision and spraying, while the blocking is over half, the equipment will automatically alarm immediately.
3. Easy operation
Drug dose can be directly adjusted on touch screen, no need to adjust the pressure, time. This automatic dosing machine also equipped with drying system, which can select on or off according to process requirements.
Parameters of Automatic Dosing Equipment
Automatic dosing machine is suitable for precise filling and spraying of blood collection tube reagent. It adopts advanced and stable plunger pump filling way, which precision reaches 1%, not affected by pressure, voltage and time.
Advantages of Automatic Dosing Machine
1. High accuracy and stability
Adopt advanced and stable plunger pump filling way, precision reaches 1%, not affected by pressure, voltage and time.
2. Automatic alarm, blockage prevention
During the process of filling and spraying, the medicament crystal will block the nozzle and it’s hard to be discovered in the traditional operation process, the check process is complicated.
In order to solve this problem, this automatic dosing equipment adopts a set of automatic alarm system, when the blocking of spraying nozzle and pipeline caused by foreign body or crystal under half, it does not affect the filling precision and spraying, while the blocking is over half, the equipment will automatically alarm immediately.
3. Easy operation
Drug dose can be directly adjusted on touch screen, no need to adjust the pressure, time. This automatic dosing machine also equipped with drying system, which can select on or off according to process requirements.
Parameters of Automatic Dosing Equipment
Production capacity | 12,000 to 15,000 pcs/h, (depends on different processes) |
Filling heads | 2 or 4 nozzle (charging system, quantity is optional), 2/4 pcs/ time |
Control precision | ≤±2% |
Tube type | Φ 13 tube (13×75,13×100) or Φ 16 tube (the tube clamp for Φ 13 and Φ16 are not universal) |
Gas consumption | ≤ 0.2m3 / min, air supply pressure: 0.5mpa≤P≤0.8Mpa |
Power | 3.6kW AC 380V 50/60Hz |
Overall size | 1200 mm× 1000 mm× 1800 mm |
Weight | 400kg |
