Description

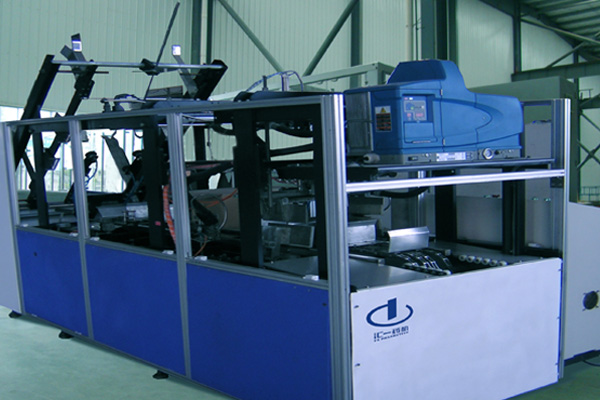

QZX15 Automatic hot melt glue box sealer includes carton forming, packing, folding, glue spraying, sealing and the following packaging process continuously and automatically finished. It is widely used for LVP PP bottle, LVP glass bottle, food, cigarettes, alcohol, beverage and other carton packaging products.

Main Features
1. Save 3 to 4 operators, machine uses flat board packing, no need bind or unpack carton, automatically carton forming and packaging.
2. Hot melt glue case sealing machine uses hot melt adhesive to seal the carton, no need of adhesive tape. Carton bottom uses one board, which prevents bottles from dropping.
3. Save the of carton ( area) about 30%.
4. Economize other machines, which saves much spaces.





Technical Parameters of Automatic Hot Melt Glue Box Sealer

Item	Data
Production speed	10 to 15 boxes/min
Table	800mm
Applicable carton size	(L)300-400 × (W)300-450 × (H)100-250mm
Machine size	(L)5260 × (W)1830 × (H)2000mm
Machine weight	1600KG
Rated power	4kW
Power supply	380V/50HZ
Air supply	150L/min 6Mpa
Hot melt adhesive	solidify time 2-3 seconds, working temperature: 150-180℃
