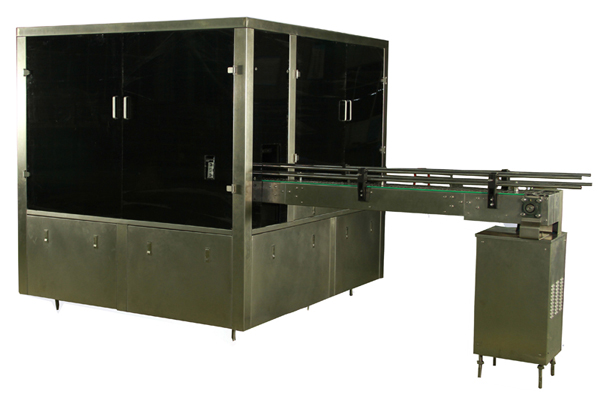

Auto Light Inspection Machine
Brief Introduction
DZDJ24 Auto light inspection machine is mainly used for the automatic inspection of visible impurity (such as glass or metal scraps, white blocks and white dots) in LVP PP bottle and the liquid level, inspection range of LVP PP bottle or glass bottle volume 50 to 250ml.
Main Features
1. Servo motor drive auto reject when there is visible impurity in PP bottle.
2. This automatic inspection machinery is comply with GMP/FDA standard.
3. Inspection date can be checked, taken out, saved and printed.
Parameters of Auto Light Inspection Machine
DZDJ24 Auto light inspection machine is mainly used for the automatic inspection of visible impurity (such as glass or metal scraps, white blocks and white dots) in LVP PP bottle and the liquid level, inspection range of LVP PP bottle or glass bottle volume 50 to 250ml.
Main Features
1. Servo motor drive auto reject when there is visible impurity in PP bottle.
2. This automatic inspection machinery is comply with GMP/FDA standard.
3. Inspection date can be checked, taken out, saved and printed.
Parameters of Auto Light Inspection Machine
Item | Data |
Size of inspection object | 50 to 250ml, PP bottle or glass bottle |
Inspection speed | 0 to 300 bottles/min |
Inspection accuracy | >40um |
Electric capacity | 10kW |
Power supply | 380V/50Hz |
Operation interface language | Chinese/English |
Compressed air | 0.8 MPa |
Overall dimension | 4600 × 2450 × 2300mm (L×W×H) |
Net weight | About 3000kg |
