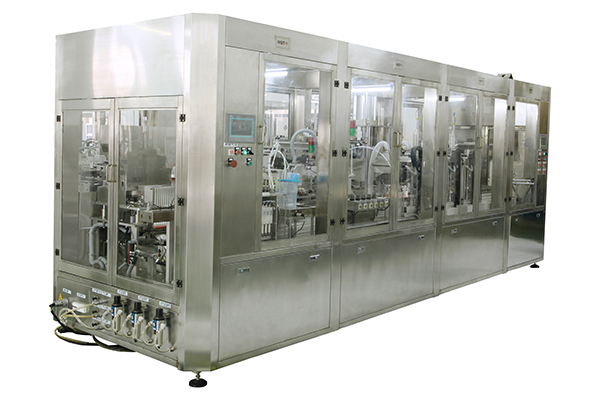

Integrated Vacutainer Production Line (before labeling)

Integrated Vacutainer Production Line (before labeling)
Description
Integrated auto vacutainer production line (before labeling) adopts brand-new online aseptic assembly and complete process semi-finished product detection techniques, better improving the stability, reliability and process accuracy, ensuring the equipment run long-term and efficiently.

Advantages of Vacutainer Production Line
1. Main online process includes tubing, atomized dosing, drying, cap stopper loading, vacuuming, tray loading etc.
2. The machine uses independent touching type to control panel, easy operation, safe running and only needs 2 operators for the whole production line.
3. The overall dimension is twice smaller comparing with other manufacturers, with the feature of high automaticity, steady performance, low failure rate and maintenance charge.

Parameters of Integrated Auto Vacutainer Production Line (before labeling)
Tube size Diameter 13mm (length 75mm or 100mm), diameter 16mm(length 100mm)
Production capacity 12,000 to 18,000 pcs/hour
Stoppering & capping pass rate ≥99%
Vacuuming stopper-cap pass rate ≥99%
Power supply 380V/50HZ
Power 12kW
Air consumption: clean compressed air pressure 0.6 to 0.8Mpa, clean compressed air consumption: 300 L/ min
Dimensions 4.5 × 1.5 × 2.1m
Weight 2.5T
