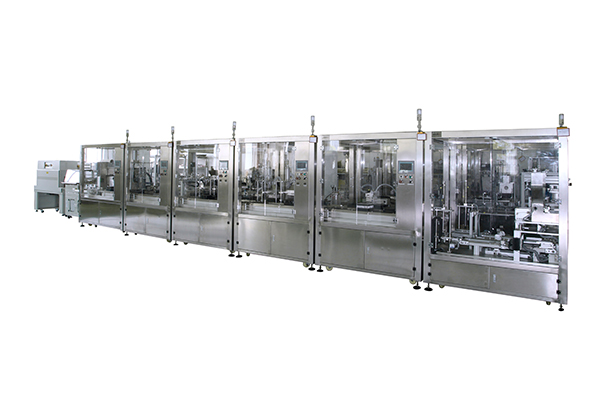

Modular type Vacutainer Production Line

Modular type Vacutainer Production Line
Description
Modular auto vacutainer production line is connected by several individual but attachable function modular. Improving traditional process and realizing humanized design of online gel adding.

Features
1. Each modular is controlled by its own PLC, only 3 skilled workers are needed for the whole line to reach 12000 to 15000pcs/h capacity.
2. No human operation online, decreasing error caused by human difference between batches, which improves production efficiency and products quality.

Flow Chart of Auto Vacuum Blood Collection Tube Production Line

Parameters of Modular Auto Vacutainer Production Line
Tube size Diameter 13mm (length 75mm or 100mm), diameter 16mm(length 100mm)
Production capacity 12,000 to 15,000 pcs/hour
Stoppering & capping pass rate ≥99%
Vacuuming stopper-cap pass rate ≥99%
Power supply 380V/50HZ
Power 12kW
Air consumption Clean compressed air pressure: 0.6 to 0.8Mpa, clean compressed air consumption: 300㎥/min
Dimensions 3.1 × 1.3 × 2.4m(L×W×H)
Weight 2T
